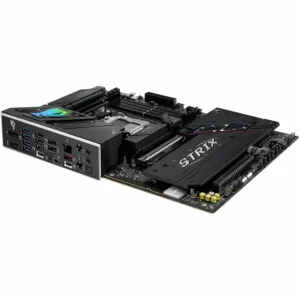

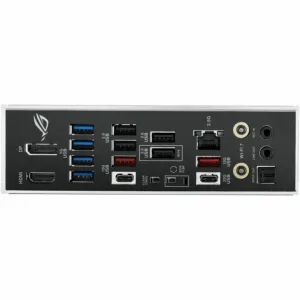

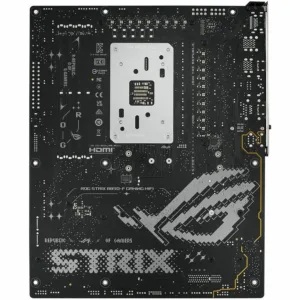

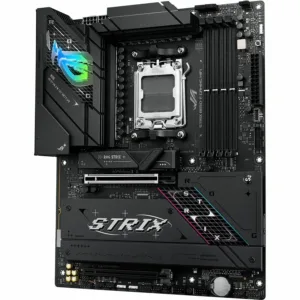

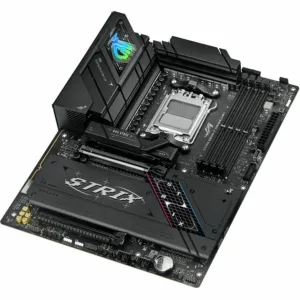

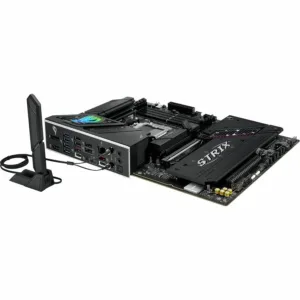

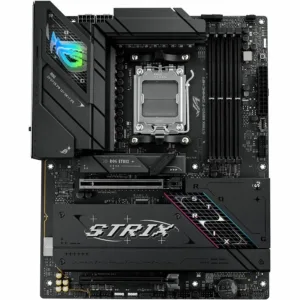

| ROG STRIX B850-F GAMING WIFI AMD B850-F ATX motherboard with 16+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe ® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, total support of 19 USB ports including USB 20Gbps Type-C ® , ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting. Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance Robust Power Solution: 16+2+2 power solution rated for 80A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad Latest M.2 Support: Two onboard PCIe ® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions Abundant Connectivity: One USB 20Gbps Type-C ® front-panel connector, four USB 10Gbps port, PCIe 5.0 x16 SafeSlots, HDMI™ port High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button, and pre-mounted I/O shield Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos ® Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard ASUS AI INTELLIGENCE | ASUS AI ADVISOR Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. Performance OVERCLOCKING | PBO ENHANCEMENT AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher. |
| Manufacturer |
ASUS Computer International |
| Manufacturer Part Number |
ROGSTRIX B850-FGAMINGWIFI |
| Brand Name |
Asus ROG |
| Product Line |
Strix |
| Product Model |
B850-F GAMING WIFI |
| Product Name |
Strix B850-F GAMING WIFI Gaming Desktop Motherboard |
| Product Type |
Gaming Desktop Motherboard |
|
| Technical Information |
AI-powered |
Yes |
|
| Processor & Chipset |
Chipset Manufacturer |
AMD |
| Chipset Model |
B850 |
| Total Processor Supported |
1 |
| Processor Socket |
Socket AM5 |
| Processor Supported |
Ryzen 7,Ryzen 8,Ryzen 9 |
|
| Memory |
Number of Memory Slots |
4 |
| Memory Form Factor |
DIMM,UDIMM |
| Maximum Memory Supported |
192 GB |
| Memory Technology |
DDR5 SDRAM |
| Memory Speed Supported |
8000 MHz |
| Error Checking |
ECC |
|
| I/O Controller |
Controller Type |
Serial ATA/600 |
| RAID Supported |
Yes |
| RAID Levels |
0,1,5,10 |
|
| Video |
Onboard Video |
CPU Dependent Video |
|
| Audio |
Audio Channels |
7.1 |
|
| Network & Communication |
Bluetooth |
Yes |
| Bluetooth Standard |
Bluetooth 5.4 |
| Gigabit Ethernet |
Yes |
| 2.5Gigabit Ethernet |
Yes |
| Wireless LAN |
Yes |
| Wireless LAN Standard |
IEEE 802.11be |
|
| I/O Expansions |
Total Number of Expansion Slots |
3 |
| PCI Express Standard |
PCI Express 4.0,PCI Express 5.0 |
| Total Number of PCI Express Slots |
3 |
| Number of PCI Express x16 Slots |
3 |
|
| Interfaces/Ports |
Total Number of USB Ports |
12 |
| S/PDIF |
Yes |
| VGA |
Yes |
| HDMI |
Yes |
| HDMI Version |
2.1 |
| DisplayPort |
Yes |
| Number of Network (RJ-45) Ports |
1 |
| Thunderbolt |
Yes |
| Number of Thunderbolt 4 Ports |
2 |
|
| Onboard Interfaces |
Number of SATA Interfaces |
2 |
| Number of M.2 Interfaces |
4 |
| Total Number of Onboard USB Ports |
7 |
| Number of Onboard USB 2.0 Ports |
4 |
|
| Physical Characteristics |
Form Factor |
ATX |
| Width |
12″ |
| Depth |
9.6″ |
|
| Miscellaneous |
Package Contents |
Strix B850-F GAMING WIFI Gaming Desktop Motherboard 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers 1 x Quick start guide |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
|
| Warranty |
Limited Warranty |
3 Year |
|
