LCD Digital Multimeter Voltmeter Ammeter Ohmmeter Volt AC DC Tester Leads Meter
Free Delivery.
Estimated delivery:3 - 8 days
In stock
About this item

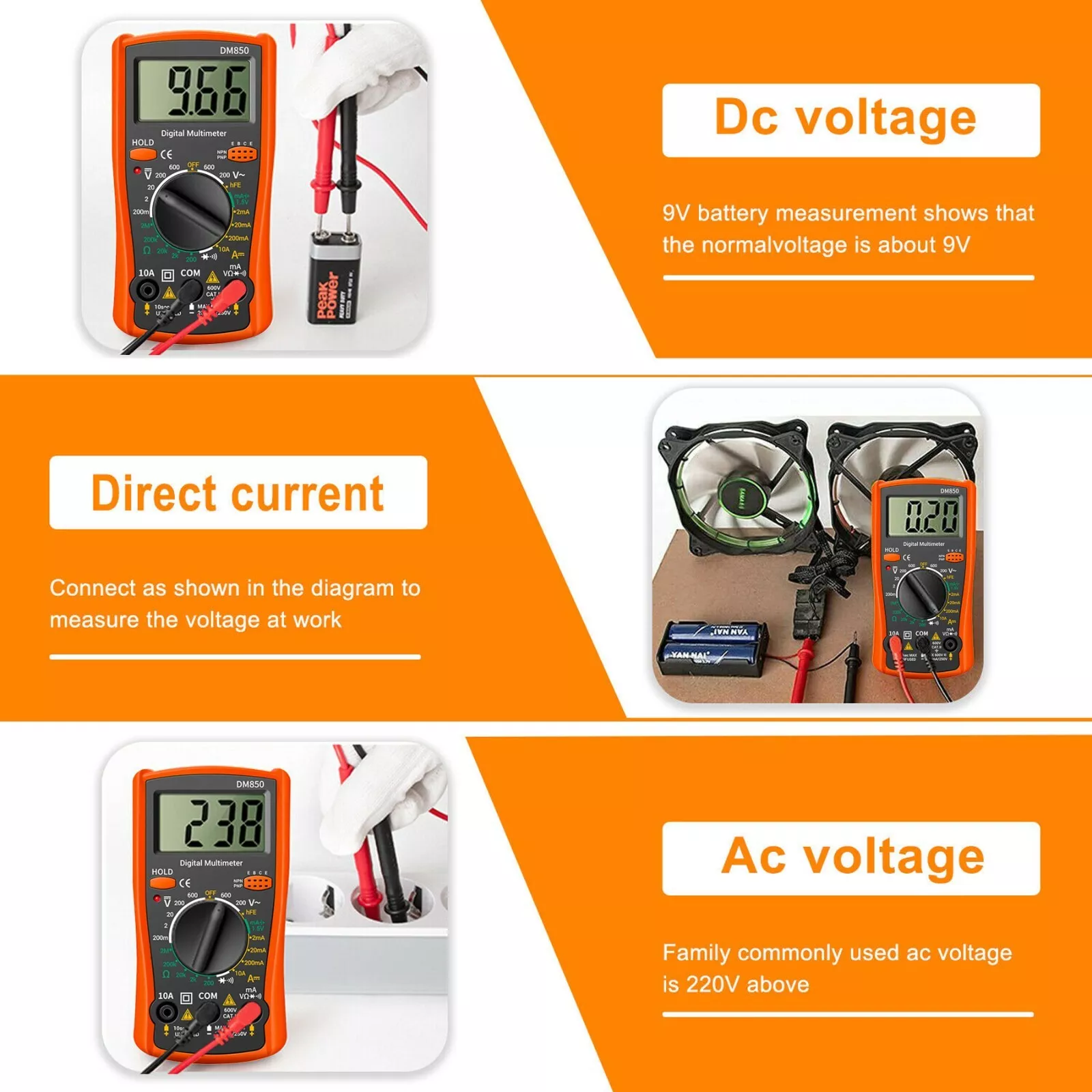

- DIGITAL MULTIMETER: Suitable for all kinds of household use and industrial use. Can be use at Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging System, Testing electronics in Cars etc. It is a AC/DC Voltmeter, Ohm Volt Amp Tester, Electric Ohmmeter, Diode, Resistance and Audible Continuity Detector.
- Troubleshooting with Speed and accuracy: This Multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD display with 3 ½ digits (1999 count) 0.6”, and high polarity including negative and positive readings.
- Electronic Tester Multimeter with Over-load Protection and Low-Power Reminder: Use the PTC protection circuit for Resistance, and frequency measurement. Over-load indication “1” will be displayed; Low battery indication will be displayed when battery power is low.

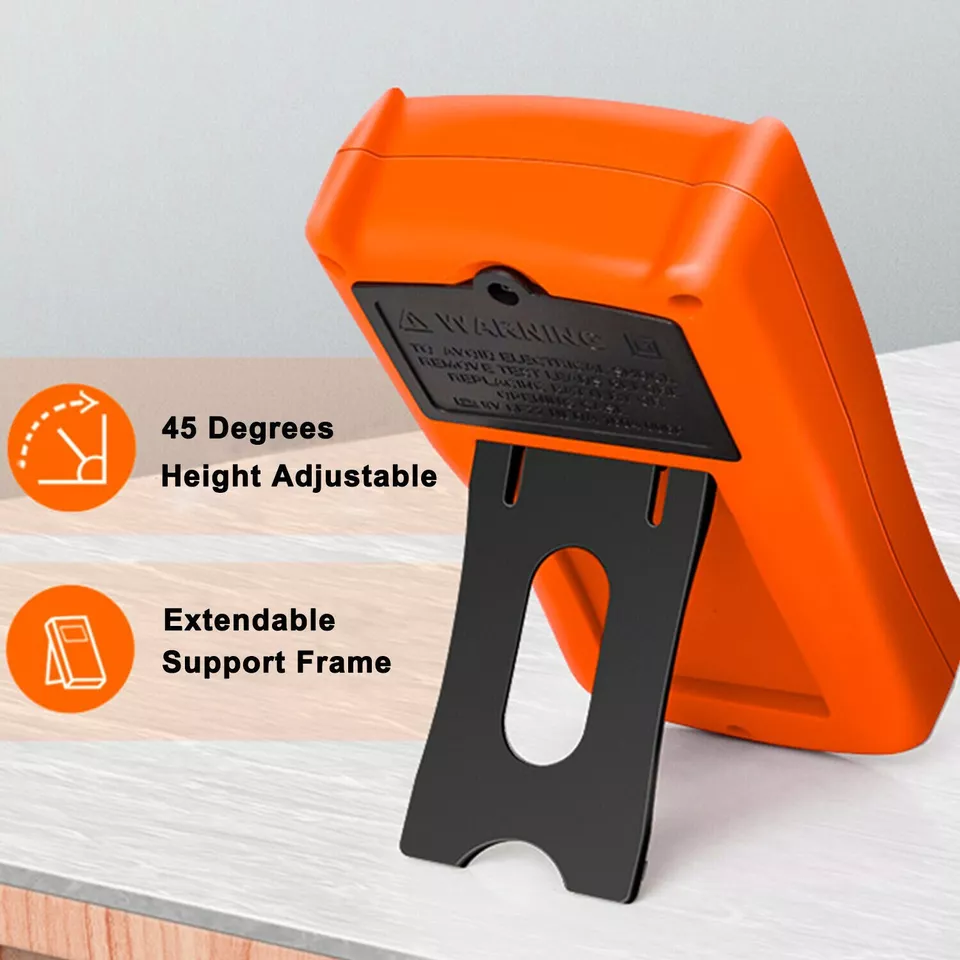

- Built in Audible Continuity Test Voltmeter and Data Hold : Buzzer will work if the resistance is lower than 30Ω±20Ω; Data Hold Function for clear reading; The Weepro digital multimeter comes with an insulated rubber case kickstand to help better grips and easier reading, and with the ABS material use at the same time provide users maximum safety.

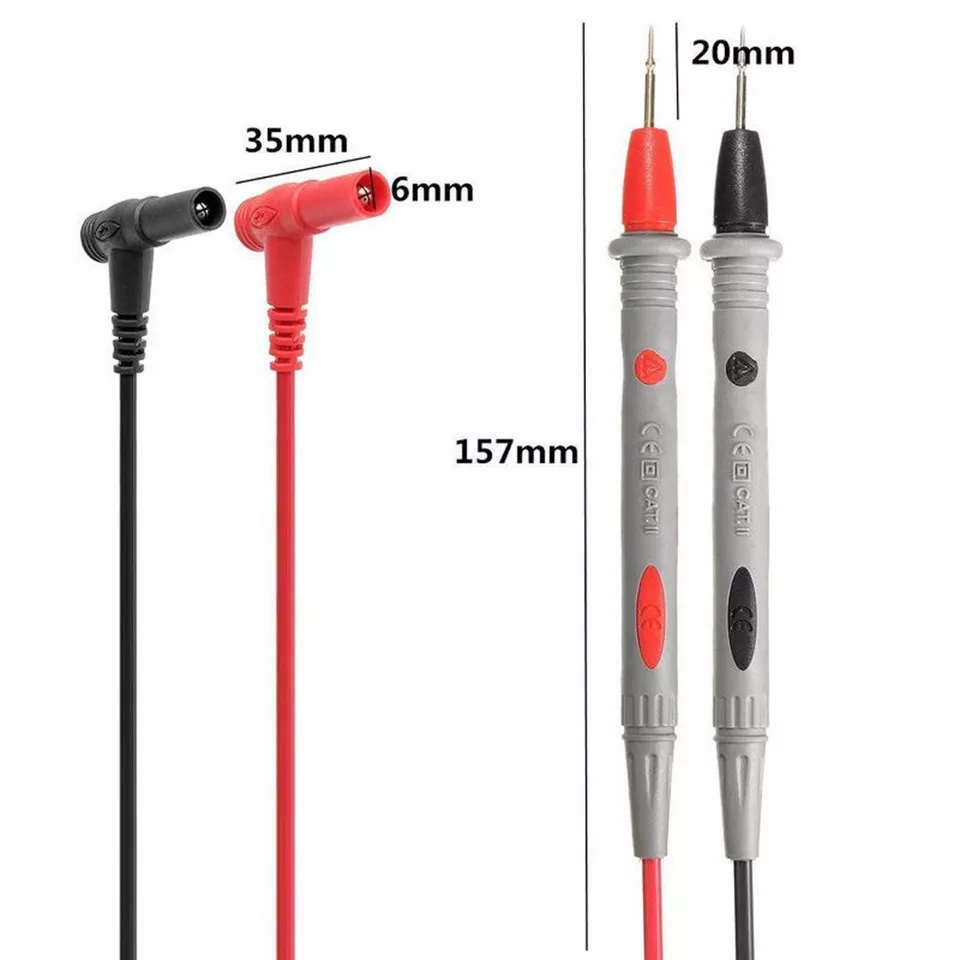

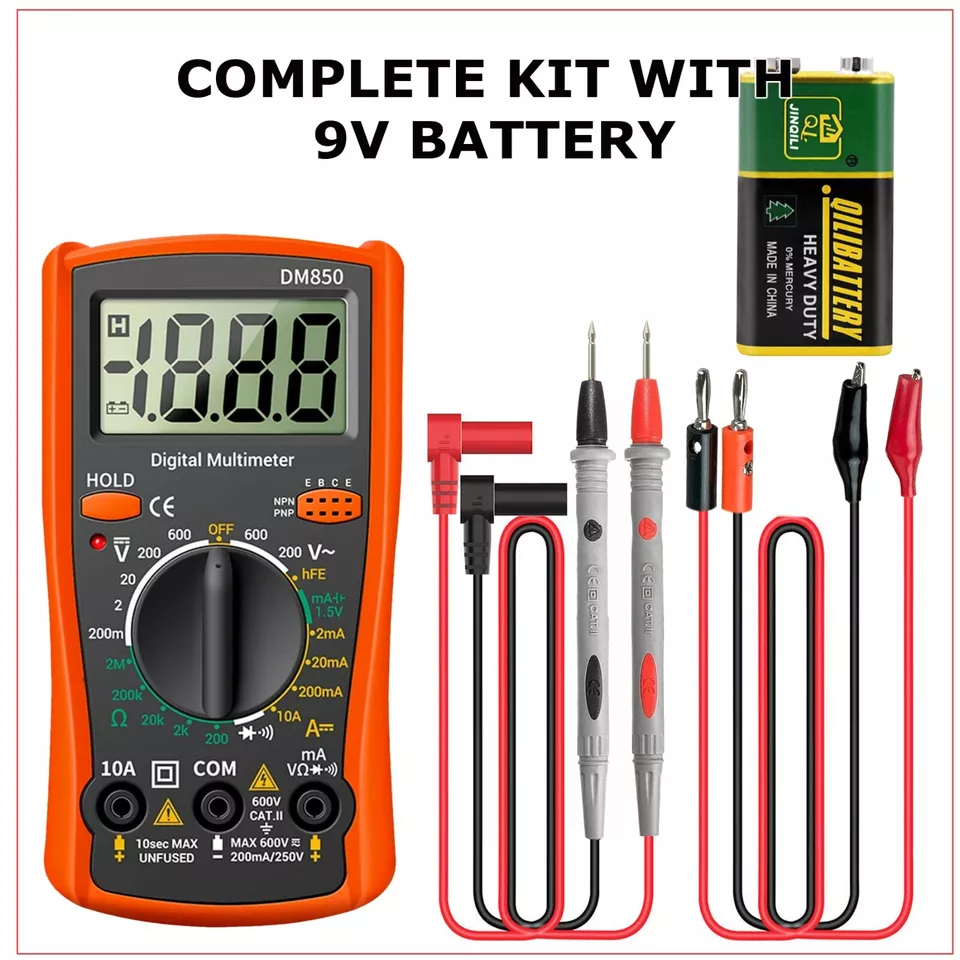

- BUY WITH CONFIDENCE: All sales come with 90-day return refund guarantee, 10-year warranty and lifetime supported by WeePro; Battery / Two 80cm Test Leads / User Manual are Included
$ 22.99
Guarantee Safe and Secure Payment Checkout
| – Type: Digital LCD Multimeter Voltmeter Ohmmeter Ammeter |
| – 100% brand new and high quality |
| – Product size: 17.5cm x 10.7cm x 7.5cm |
| – AC Voltage Range:: 200/600V |
| – Input Protection Features: HRC Fuse, Shunt Resistor |
| – DC Voltage Range:: 200mV/2/20/200/600VFeatures: Auto Power Off, Auto-Ranging, |
| Backlight, Battery Door Access, Data |
| – Resistance:: 200/2k/20k/200k/2MO |
| – Model: DM850 |
| – Diode & Audible Continuity:: Diode testing 2.4V,1.5mA; Buzzer Sounds<30±20O |
| SPECIAL FEATURES |
| – Low Battery Indication |
| – Data Hold |
| – 3 Digit LCD MAX 1999 |
| – Test/Measurement Functions: AC Current, AC Voltage, Capacitance, Continuity Test, |
| DC Current, DC Voltage, Diode Test, Duty Cycle |
| – Dynatron: Yes |
| – Continuity Buzzer |
| – Sample Rate: 3times/S |
| – Low Battery Indication |
| – Accuracy: ±a% of reading: ± N0 digits. |
| – Working temperature : 23?±2?. |
| – Relative Humidity: <75% |

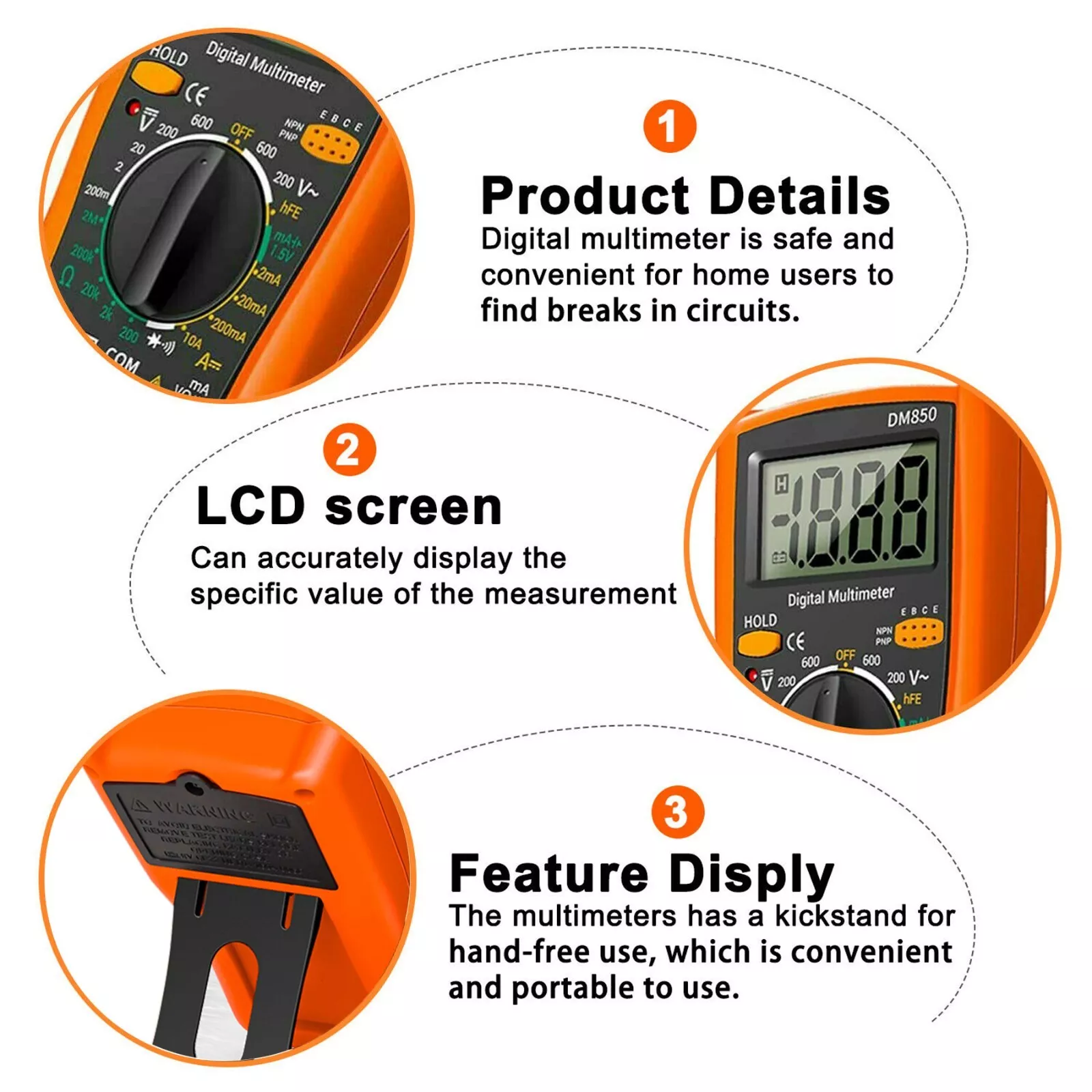

| Product Details |
| – FRONT PANEL DESCRIPTION 1. FUNCTION AND RANGE SWITCH This switch is used to |
| select the function ano desired range as well as to turn on the instrument.To extend |
| the life of this battery, the switch should be in the “OFF” position when the nstrument is |
| not in use. 2. DISPLAY 3? digit, 7 segment, 0.5″ high LCD. 3. “Common” JACK Plug in |
| connector for black (negative) test lead 4. “VQmA” JACK Plug in connector for red |
| (Positive) test lead for all voltage and resistance and current (except 10A) |
| measurements. 5. “10A JACK Plug in connector to red (positive) test lead for 10A |
| measurement. |
| Note: |
| – Please do not change the inner circuit to aviod damaging the ammeter |
| – Do not connect it to the voltage over 1000VDC or 750VAC |
| – Make sure not connect the error measure range |
| – Please do not use the ammeter if the back cover is wrong |
| – Please remove the pen and cut off the power before replacing battery and fuze |
| – Do not directly plug into the socket to measure the current |
| otherwise, the meter will be damaged |
- Please read the instructions for specific measurement methods |
-
Package Type – RETAIL BOX?
This item comes in brand new manufacturer retail packaging, same as what is found in a retail store. unused, unopened, undamaged item.
SHIPPING
- We ship all orders the same day or next business day.
- Once an order is shipped, we will email you a tracking number.
- We ship to all USA states including Puerto Rico, Hawaii, Alaska, APO/FPO/DPO and selected international destinations. (Please check shipping and handling tab for country specific details)
- Please make sure you enter the correct shipping address at the checkout. We will not make any changes to the shipping address once you place the order.
