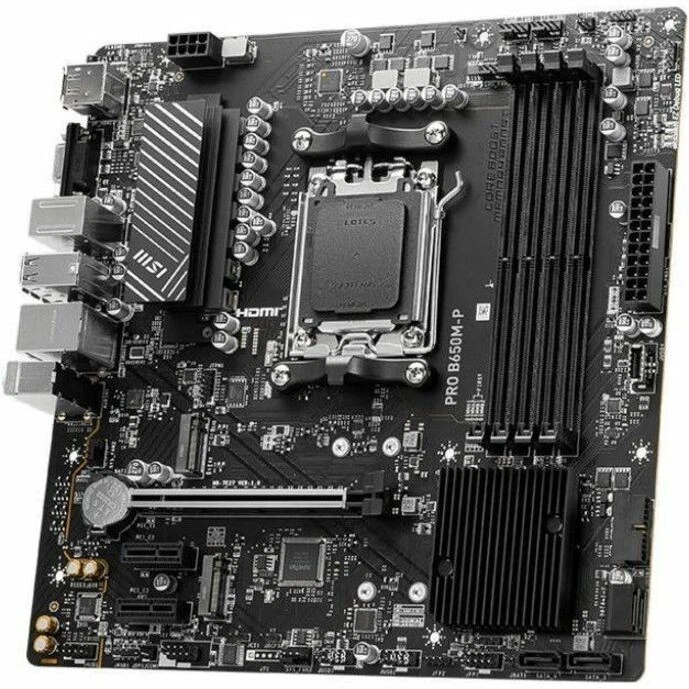

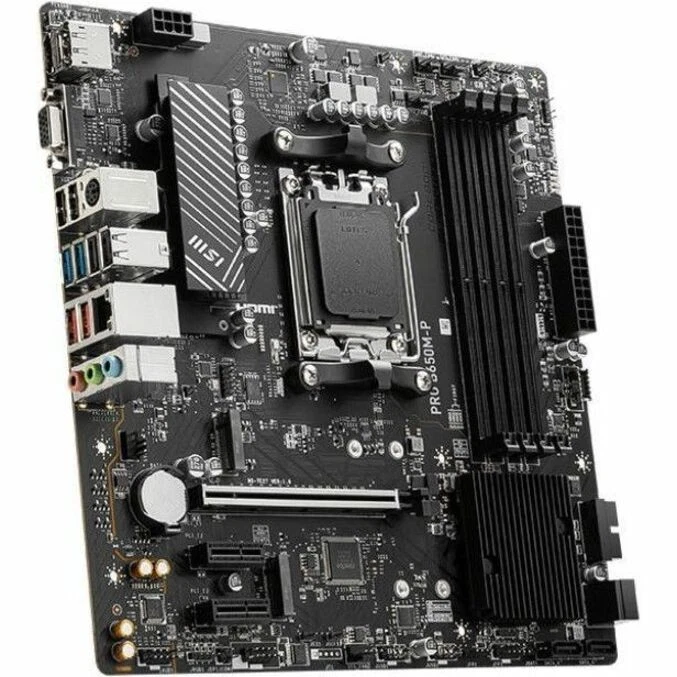

| The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Heavy Plated VRM Heatsink The VRM heatsink covers the MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed. Chipset Heatsink The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH. |
| Manufacturer |
MSI |
| Manufacturer Part Number |
B650MP |
| Brand Name |
MSI |
| Product Series |
PRO |
| Product Model |
B650M-P |
| Product Name |
Pro B650M-P Gaming Desktop Motherboard |
| Product Type |
Gaming Desktop Motherboard |
|
| Processor & Chipset |
Chipset Manufacturer |
AMD |
| Chipset Model |
B650 |
| Total Processor Supported |
1 |
| Processor Socket |
Socket AM5 |
| Processor Supported |
Ryzen 7 |
|
| Memory |
Number of Memory Slots |
4 |
| Memory Form Factor |
DIMM,UDIMM |
| Maximum Memory Supported |
192 GB |
| Memory Technology |
DDR5 SDRAM |
| Memory Speed Supported |
6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz |
|
| I/O Controller |
Controller Type |
Serial ATA/600 |
| RAID Supported |
Yes |
| RAID Levels |
0,10,1 |
|
| Video |
Onboard Video |
CPU Dependent Video |
|
| Audio |
Audio Channels |
7.1 |
|
| Network & Communication |
Gigabit Ethernet |
Yes |
| 2.5Gigabit Ethernet |
Yes |
|
| I/O Expansions |
Total Number of Expansion Slots |
3 |
| PCI Express Standard |
PCI Express 4.0,PCI Express 3.0 |
| Total Number of PCI Express Slots |
3 |
| Number of PCI Express x1 Slots |
2 |
| Number of PCI Express x16 Slots |
1 |
|
| Interfaces/Ports |
Total Number of USB Ports |
8 |
| Number of USB 2.0 Ports |
4 |
| Number of USB 3.2 Gen 1 Type-A Ports |
2 |
| Number of USB 3.2 Gen 2 Type-A Ports |
2 |
| VGA |
Yes |
| HDMI |
Yes |
| HDMI Version |
2.1 |
| DisplayPort |
Yes |
| Number of Network (RJ-45) Ports |
1 |
|
| Onboard Interfaces |
Number of SATA Interfaces |
4 |
| Number of M.2 Interfaces |
2 |
| Total Number of Onboard USB Ports |
7 |
| Number of Onboard USB 2.0 Ports |
4 |
|
| Physical Characteristics |
Form Factor |
Micro ATX |
| Width |
9.6″ |
| Depth |
9.6″ |
|
| Miscellaneous |
Brand Compatibility |
AMD |
