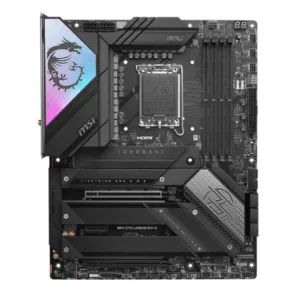

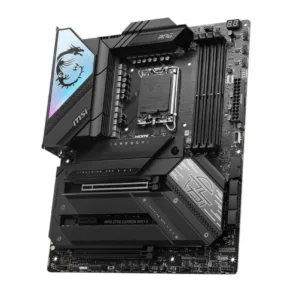

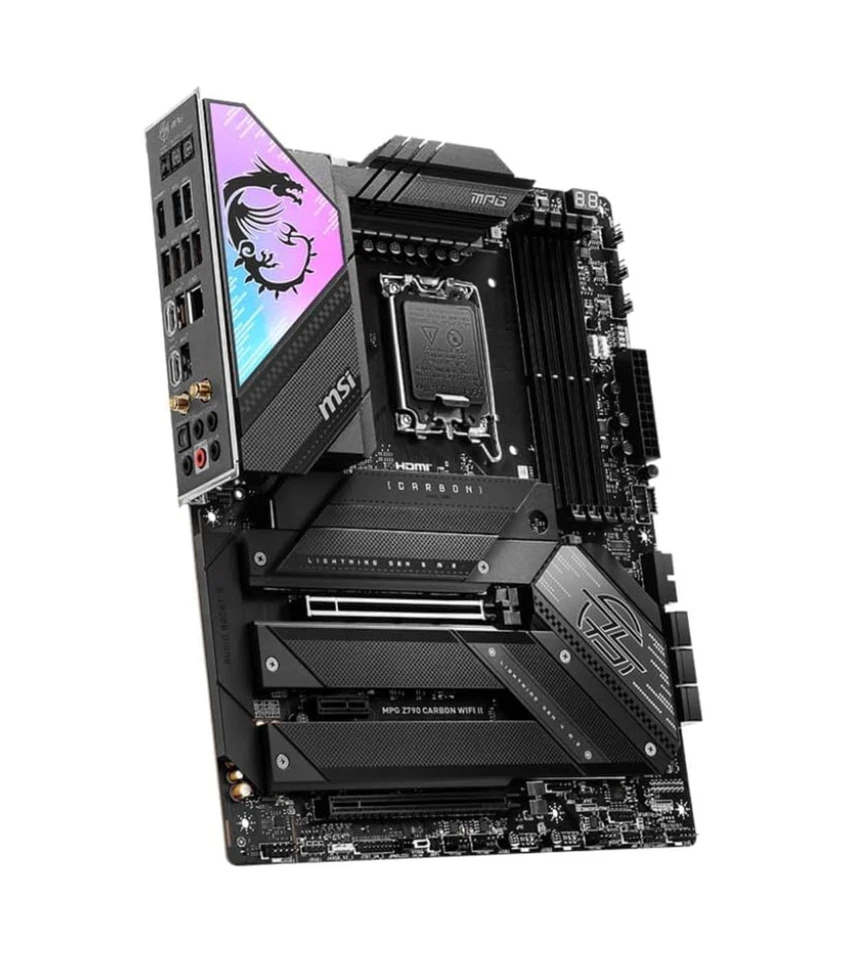

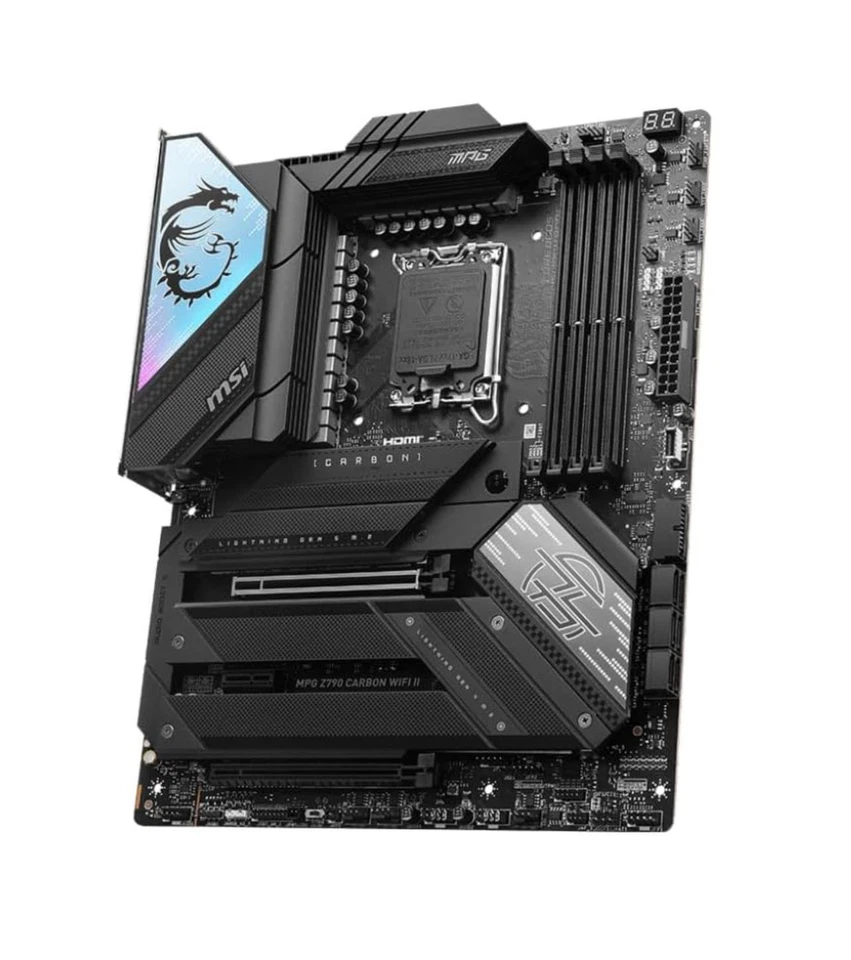

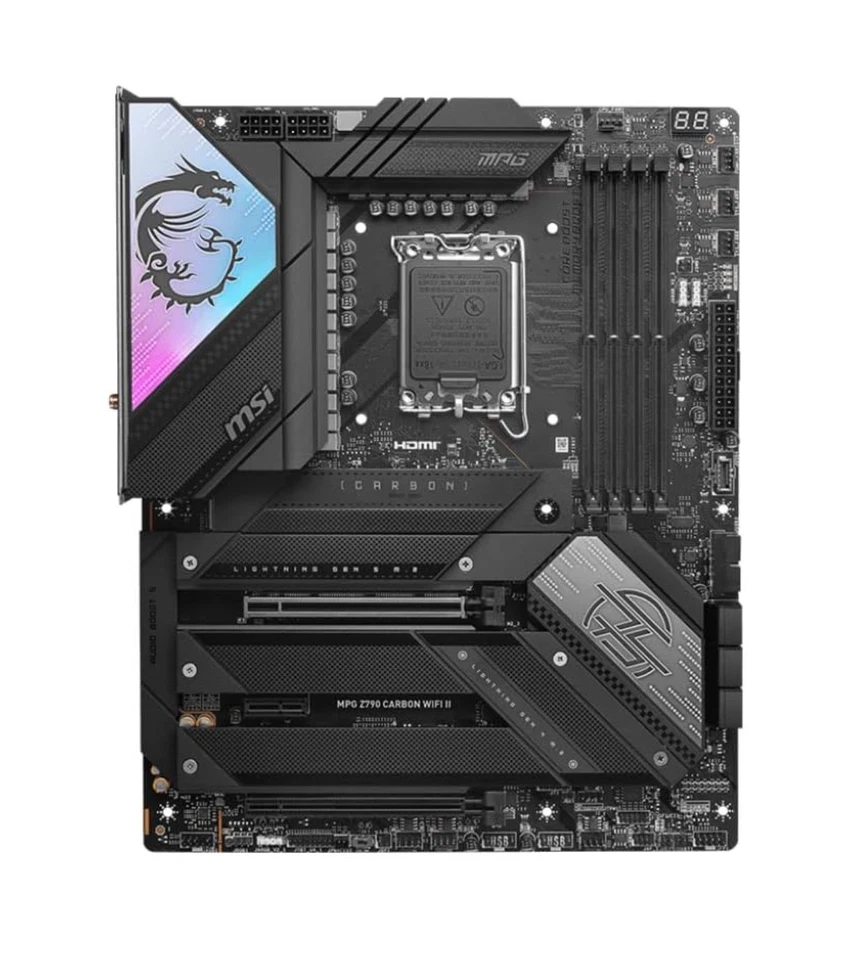

MSI MPG Z790 CARBON WIFI II LGA 1700 DDR5 6x SATA 6G PCIE x16 Motherboard

Free Delivery.

Estimated delivery:3 - 8 days

In stock

Short Description

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

$ 538.99

Categories: , Tags: , ,
Brand:
Add to Wishlist
Compare
or

Have any Questions?

Feel free to Get in touch

Pay safely with Visa Pay safely with Master Card
Guarantee Safe and Secure Payment Checkout

Learn more about MSI MPG Z790 CARBON WIFI II

Model
Brand
MSI
Model
MPG Z790 CARBON WIFI II
Supported CPU
CPU Socket Type
LGA 1700
CPU Type
Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset
Intel Z790
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
DDR5 5600
Maximum Memory Supported
192GB
Channel Supported
Dual Channel
Memory Performance Profile
Intel XMP 3.0
Memory Feature
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7800+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHzSupports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slots
PCI Express 5.0 x16
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.
SATA RAID supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
* SATA_A1~A2 do not support RAID function.
Additional RAID Controller Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices. Onboard LAN
Max LAN Speed 2.5 Gbps. Wireless LAN Wi-Fi 7. Bluetooth 5.4. Rear Panel Ports: Back I/O Ports
1 x Flash BIOS / 1 x Clear CMOS
2 x USB 3.2 Gen 1 5 Gbps (Type-A)
6 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x 2.5G LAN
2 x Wi-Fi / Bluetooth
5 x Audio Connectors
1 x Smart Button
1 x HDMI
1 x USB 3.2 Gen 2 10Gbps (Type-C)
1 x USB 3.2 Gen 2×2 20Gbps (Type-C)
1 x Optical S/PDIF Out
Physical Spec
Form Factor
ATX
LED Lighting
4 x EZ Debug LED
1 x 2-Digit Debug Code LED
1 x EZ LED Control switch
Dimensions (W x L)
12.0″ x 9.6″
Windows Compatibility
Windows 11
Supported
Packaging

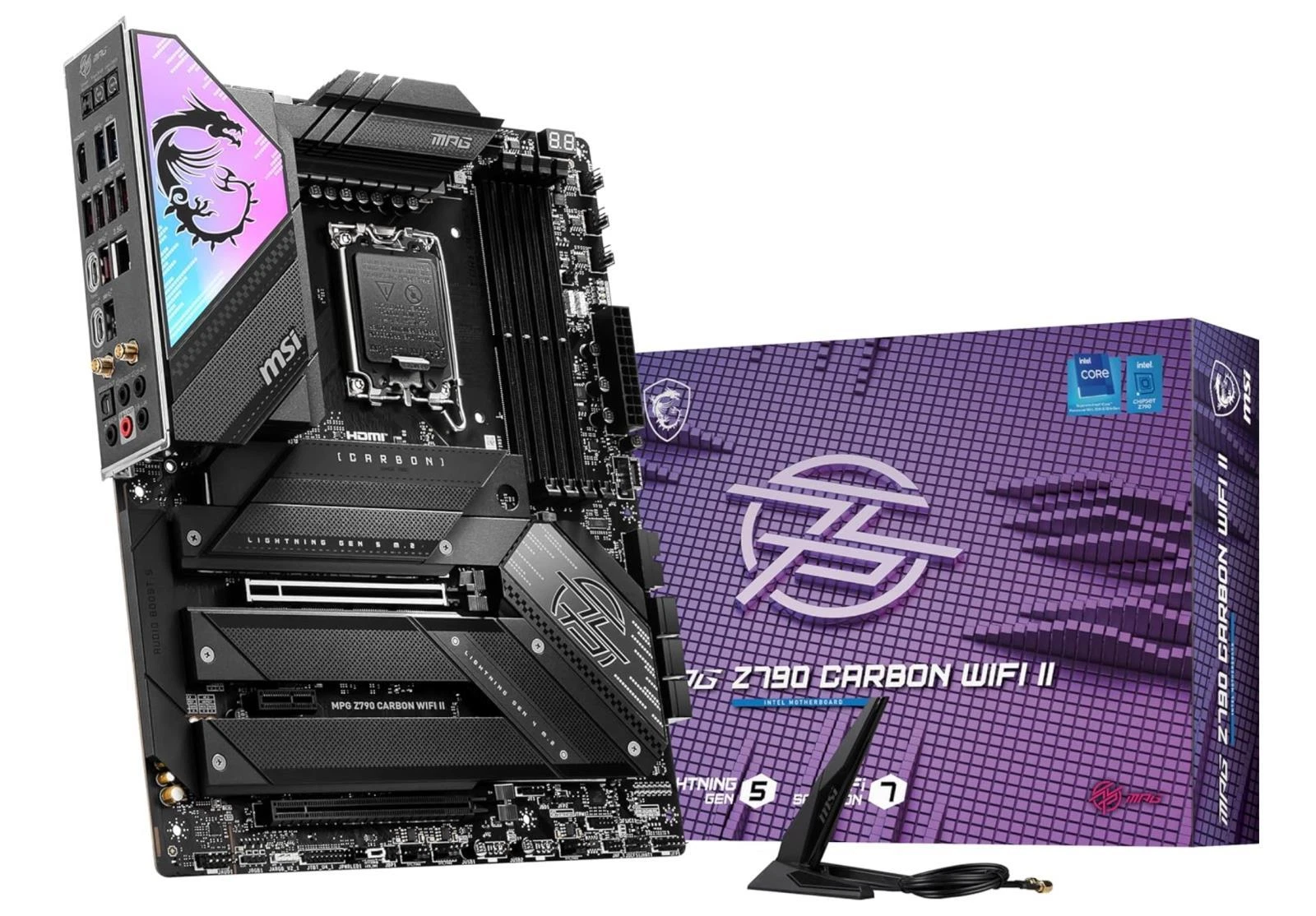

Package Contents
Quick Installation Guide
Cable Sticker
4 x EZ M.2 Clip Packages
Shout out flyer
Wi-Fi Antenna
USB Drive
2 x SATA Cables
JARGB Extension Cable
JRGB Extension Cable (1 to 2)
ARGB & Fan Extension Y-Cable Cable
Front panel cable
